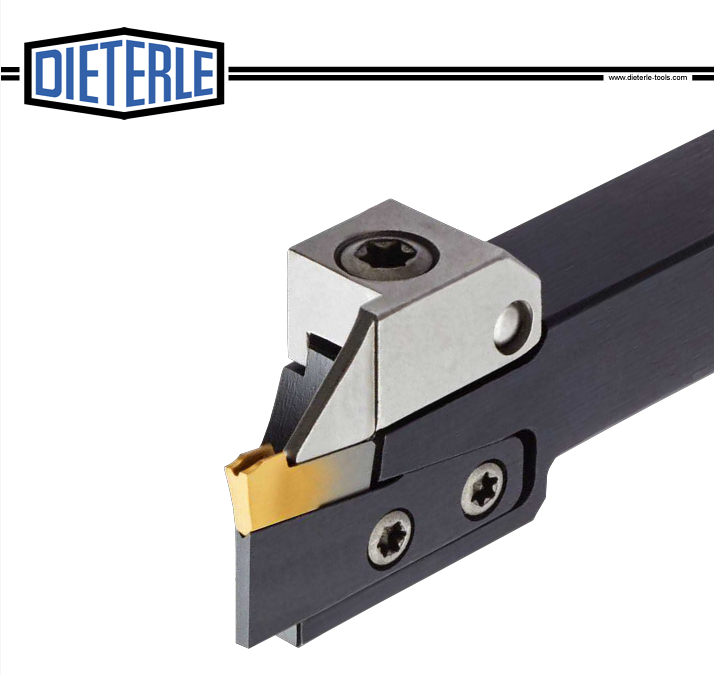

Dieterle SSDA-GS Counter Spindle Holders for Traub-TNL
Product Code: for inserts with a cutting width of 1.6 - 2.4 mm
SKU:
Enquiry Item
- DAK Parting Off Systems - classic parting off tools with special geometries for various materials
- DAK parting off system guarantees an exact position of the insert by the clamping via double prism V-forms.
- Classic parting off system in one piece with chucking screw
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.

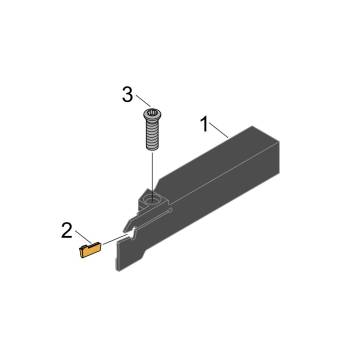

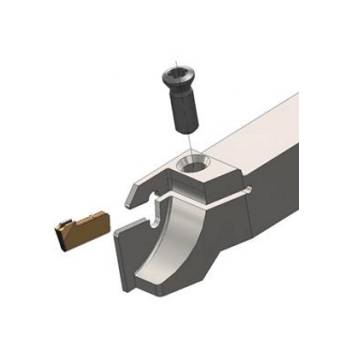

(1) Tool holders in one piece with chucking screw
Right-hand versions shown
(2) Suitable indexable inserts:
DAK-16 [b = 1,6]
DAK-24 [b = 2,4]
Spare parts:
(3) Screws
M-5x13
M-5x18
