Loc-Line Vacuum Hose – 9 Elements 2.5″ ID - (81201, 81202, 89220)
- $25.50
1 segment = 9 Hose Elements, 2.5" ID. Designed for air applications only; Not designed for fluid. Standard vacuum hose segments in convenient 1ft long section. Sections can be assembled or dis-assembled to make a hose any length you want!
Various packaging sizes available. See "description" below.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
1 segment = 9 Hose Elements, 2.5" ID.
Designed for air applications only; Not designed for fluid.
81201 – 2-1/2″ Vacuum Hose 1pc (1 ft Segment)

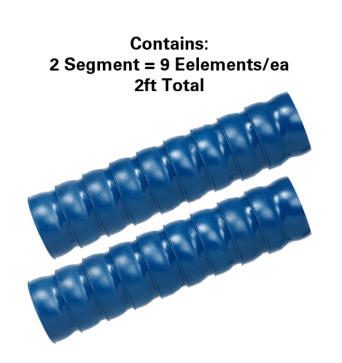

81202 – 2-1/2″ Vacuum Hose 2pc (1 ft Segment)

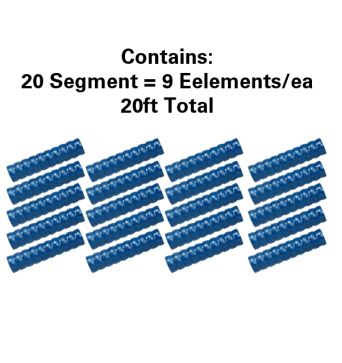

89220 – 2-1/2″ Vacuum Hose 20pc (1 ft Segments)
Materials and Properties
Loc-Line: Vacuum Hose and Fittings
Colors: Blue, Orange
Material: Acetal Copolymer
PVC Adapter: PVC
Compatibility:
Yes: Acids under 150F, Alcohols, Aromatic Solvents, Gasoline, Grease, Hydrocarbons, Oils, Salt Solutions
No: Chlorine, Acetone, Chlorinated Solvents, Bases Strong, Ethyl Acetate, Water Hotter than 150F
Melting Point: 329F
Maximum Operating Temperature: 170F (Repeated exposure to this temperature will cause fatigue)
Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.
