Loc-Line Shield Mounting Elbow W/Washer & Screw - pack of 2 (60531, 69561)
- $14.00
Shield Mounting Elbows are used in our shield kits to attach the shield to the 3/4” hose.

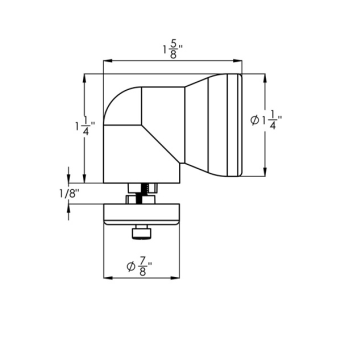

These Shield Mounting Elbows can be used to attach 3/4” Loc-Line to any 1/8” thick material with a 1/4” hole.
By placing the elbow on one side and the washer on the other side of the material, the included Allen head screw provides clamping force to attach the mounting elbow.
Standard 3/4” Loc-Line hose can be attached to the socket end of the mounting elbow.
See description below for more info.
Pack of 20 available under "Quantity"
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Washer and screw included. Designed for mounting Loc-Line shields but useful in many other applications.
60531 – Shield Mounting Elbow W/Washer&Screw – Pack of 2, Pack of 20
Materials and Properties:
Material: Acetal Copolymer
Colors: Orange, Black, Grey
Compatibility:
Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide
No: Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite
Melting Point: 329F
Maximum Operating Temperature: 170F (Repeated exposure to this temperature will cause fatigue)
