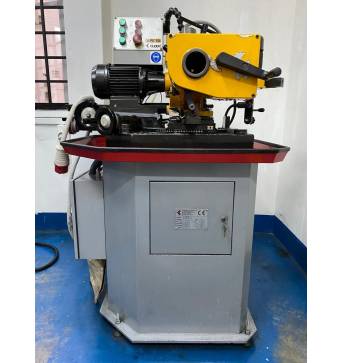

Cuoghi Drill Sharpening Machine / Tool Grinding machine APE60

Product Code: APE60

SKU:

Enquiry Item

Sharpening machine for twist drills, countersinks, taps, step drills:

Sharpening capacity from 3mm to 60mm
Right and left-hand tools up to 12 cutting edges with angles between 40° and 180°

The accessories supplied include precision chuck with 6 jaws, device for web thinning, CBN/Diamond grinding wheel with flange, set of 4 cams, 8" bench grinder, wire wheel brush, coolant pump, drill press vise, etc.

Directive CE label.

An air-cooled and pneumatic suction cooling system can be supplied as an alternative to the water-cooling system supplied as standard

Enquiry

Out Of Stock!

This product is out of stock, submit your email and we will update once it restock.

0 Review(s) / Write A Review

Sharpening capacity from mm. 3 to mm.

60 Drill angles between 40° and 180°

Right and left cutting edges from 1 to 12

Accessories supplied include: Precision chuck with 6 jaws, device for web thinning, set of 4 cams, base, halogen lamp, grinding wheels, etc. An air-cooled and pneumatic suction cooling system can be supplied as an alternative to the water-cooling system supplied as standard.

Technical Data: Diameter range mm. 3 - 60 Left or right cutting edges 1 - 12 Point angle 40° - 180° Revolution ratio between spindle and cam 1:1 - 1:2 Rake angle 0° - 18° Point grinding electric spindle power 1,5 KW self-braking Grinding wheel Ø 200 x 45 x 32 Point splitting electric spindle power 0,18 KW Grinding wheel for point thinning Ø 125 x 7 x 20 Pump motor power 0,06 KW Overall dimensions mm 1040 x 750 x 1250
