Emuge Franken HSK-E Collet Chuck for PGR collets - 6810.321507
Product Code: HSK-E32 / Ø 3-10 X 75 / PGR15
SKU: 6810.321507
Enquiry Item

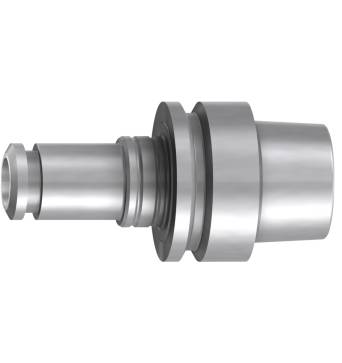

Collet chuck, hollow taper shank (HSK-E) according to DIN ISO 69893-5, for PGR collets.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Collet chuck, hollow taper shank (HSK-E) according to DIN ISO 69893-5, for PGR collets.
Product features and benefits:
Designed for internal coolant supply.
High precision operation due to fine balancing and concentricity deviation <= 3 µm.

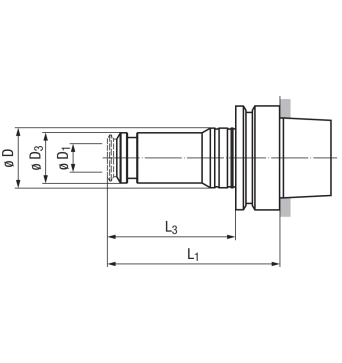

| clamping diameter ØD₁: | 3 - 10 mm |
| collet size: | PGR 15 |
| diameter ØD₃: | 24 mm |
| outside diameter ØD: | 24 mm |
| usable length L₃: | 55 mm |
| projecting length L₁: | 75 mm |
| shank norm: | DIN 69893-5 |
| shank size: | HSK32 |
| shank form: | E |
| concentricity: | <=0,003 mm |
| imbalance: | < 1 gmm (at 60000 rpm) |
| category: | powRgrip |
| version: | Holder |
| product line: | FRANKEN |
| note: | not suited for fine-balancing rings |
