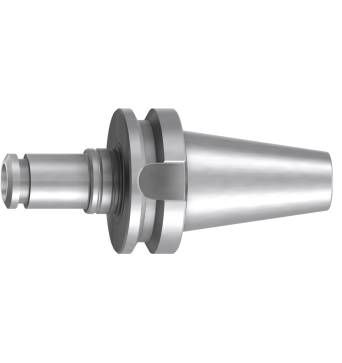

Emuge Franken MAS43 BT Collet Chuck for PGR collets - 6830 502512
Product Code: BT-50 / Ø3-20 X 120 / PGR 25
SKU: 6830.502512
Enquiry Item
Collet chuck, steep taper shank (BT 30, BT 40, BT 50), form AD, according to DIN ISO 7388-2, for PGR collets.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Collet chuck, steep taper shank (BT 30, BT 40, BT 50), form AD, according to DIN ISO 7388-2, for PGR collets.
Product features and benefits:
Designed for internal coolant supply.
High precision operation due to fine balancing and concentricity deviation <= 3 µm.
| clamping diameter ØD₁: | 3 - 20 mm |
| collet size: | PGR 25 |
| diameter ØD | 40 mm |
| outside diameter ØD: | 50.5 mm |
| usable length L₃: | 82 mm |
| projecting length L₁: | 120 mm |
| shank norm: | ISO 7388-2 |
| shank size: | BT50 |
| shank form: | JD |
| taper quality: | AT3 |
| concentricity: | <=0,003 mm |
| balance quality: | G2,5 (at 22000 rpm) |
| category: | powRgrip |
| version: | Holder |
| product line: | FRANKEN |
