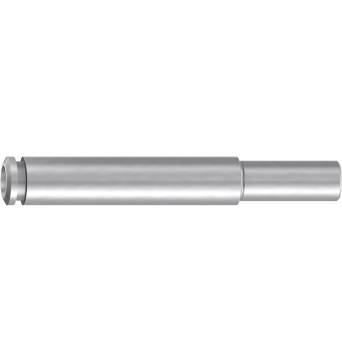

Emuge Franken Collet Chuck Extension for use with PGR collets - 6840.201517
Product Code: Ø20 / Ø3-10 X 170 / PGR 15
SKU: 6840.201517
Enquiry Item
Collet chuck extension for use with PGR collets.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Collet chuck extension for use with PGR collets.
Product features and benefits:
Enables very high precision operation due to concentricity deviation <= 3µm.
Designed for internal coolant supply.

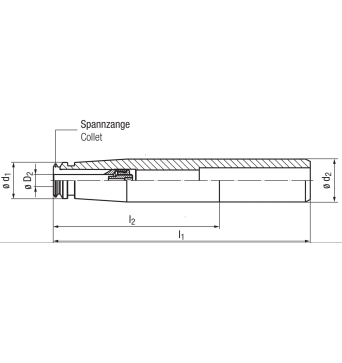

| clamping diameter ØD₁: | 3 - 10 mm |
| collet size: | PGR 15 |
| diameter ØD₃: | 24 mm |
| outside diameter ØD: | 20 mm |
| overall length L: | 170 mm |
| usable length L₃: | 120 mm |
| projecting length L₁: | 120 mm |
| shank norm: | DIN 1835 |
| shank size: | 20 mm |
| shank form: | A |
| concentricity: | <=0,003 mm |
| category: | powRgrip |
| version: | Extension |
| product line: | FRANKEN |
